Release 2.8 · visual QA archive

Grounded vocabulary cards

Five synchronized motion captures now prove the staggered entrance across five different photos and anchor distributions. Earlier failed captures remain below as an explicit audit trail.

5 verified motion sets 5 synchronized videos 5 settled position captures 5 motion contact sheets 28 QA artifacts + 1 user-provided baseline

Position evolution

The final frame is the emulator-verified implementation.

User-provided baseline with a fixed card rail and long crossing arrows
Reported problem

User-provided baseline

Fixed left rail, long connectors, and multiple crossings.

First object-local placement pass with two lower cards overlapping
Iteration 1

First object-local pass

Direction improved, but the dense lower cluster exposed a Salsa/Totopos overlap.

Final grounded vocabulary placement with angled cards and short noncrossing arrows
Final

Retuned global placement

Four angled cards, rotation-aware clearance, short local pointers, and no connector crossings.

Verified animation + layout robustness

Each video uses an in-recording replay trigger; watch for empty → one card → four cards.

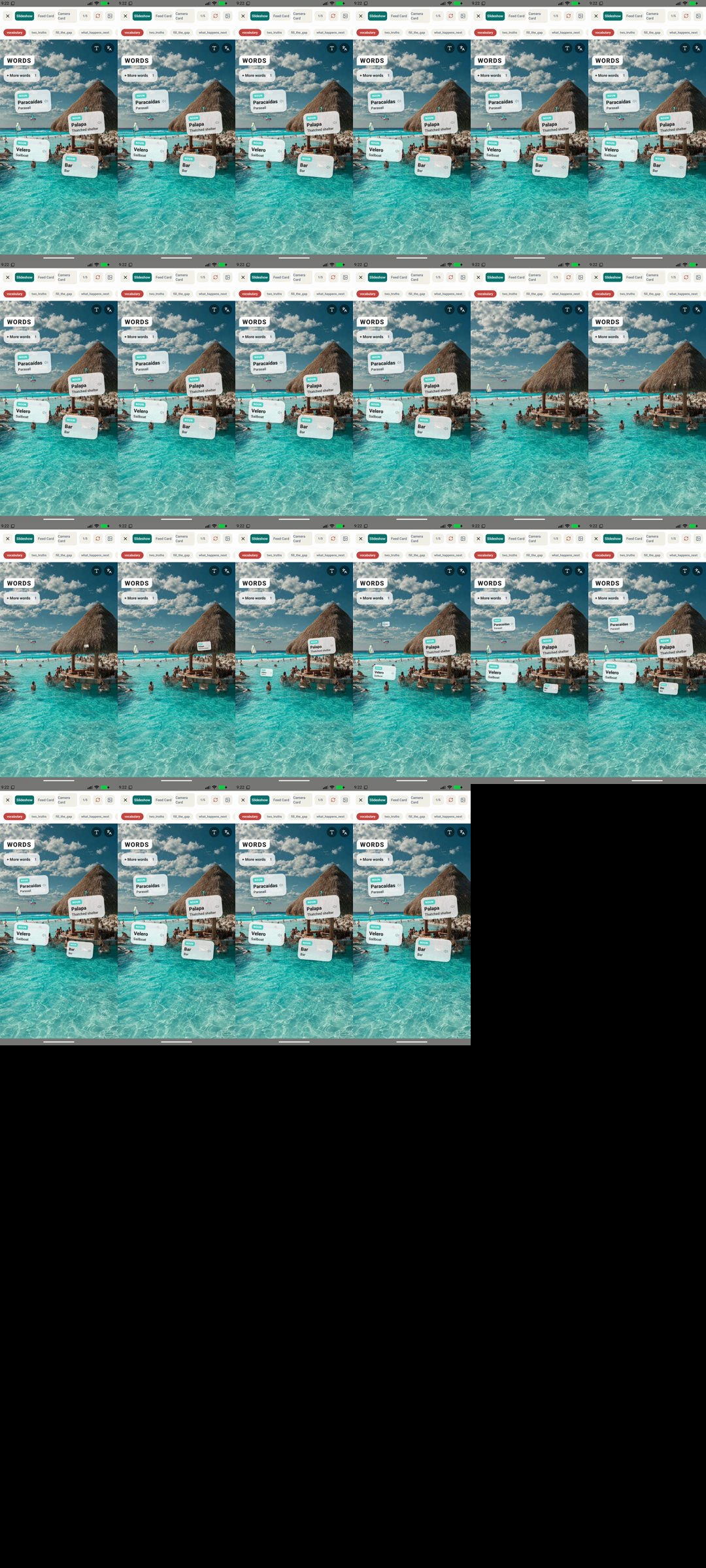

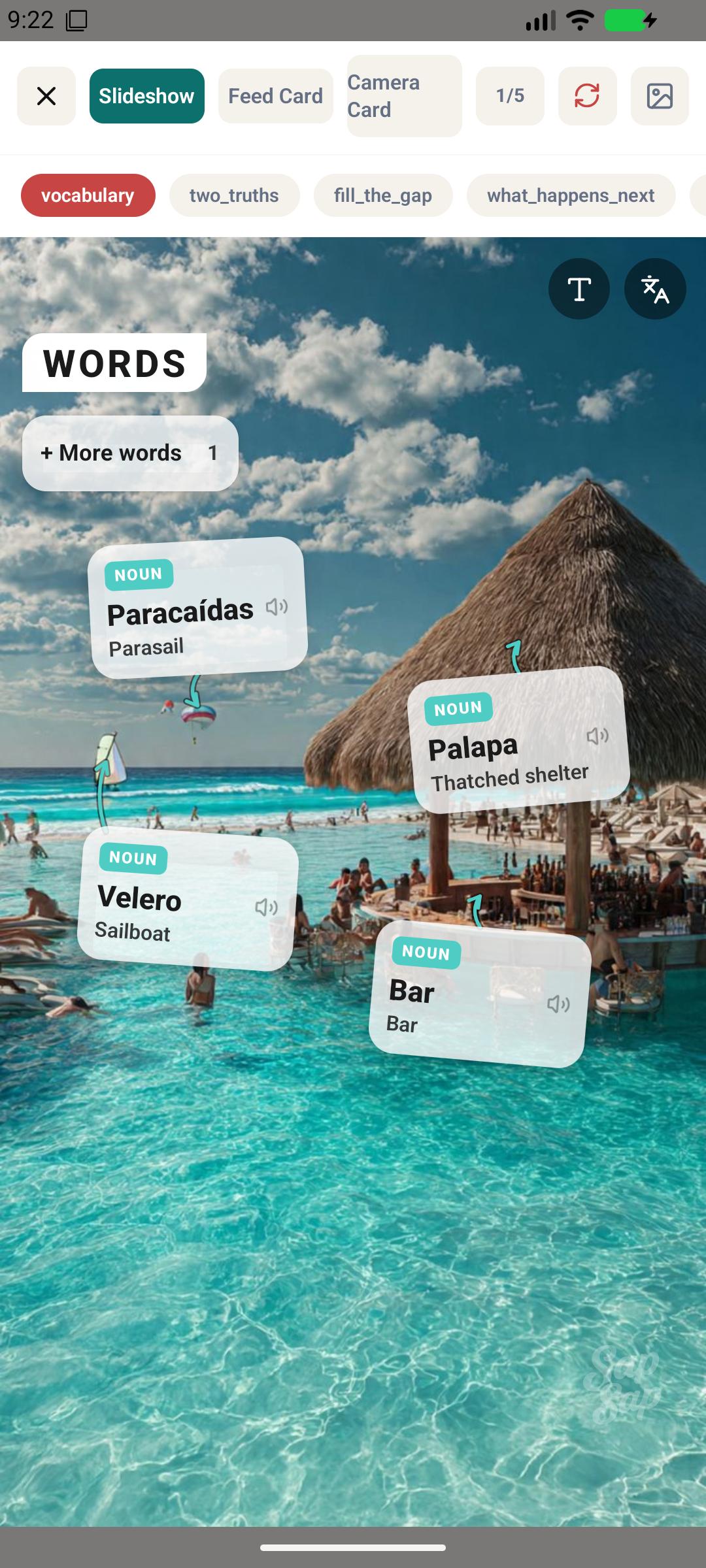

Pool bar final grounded-card layoutPool bar animation contact sheet
Set 1

Pool bar

Wide spatial distribution: parasail, palapa, sailboat, and bar.

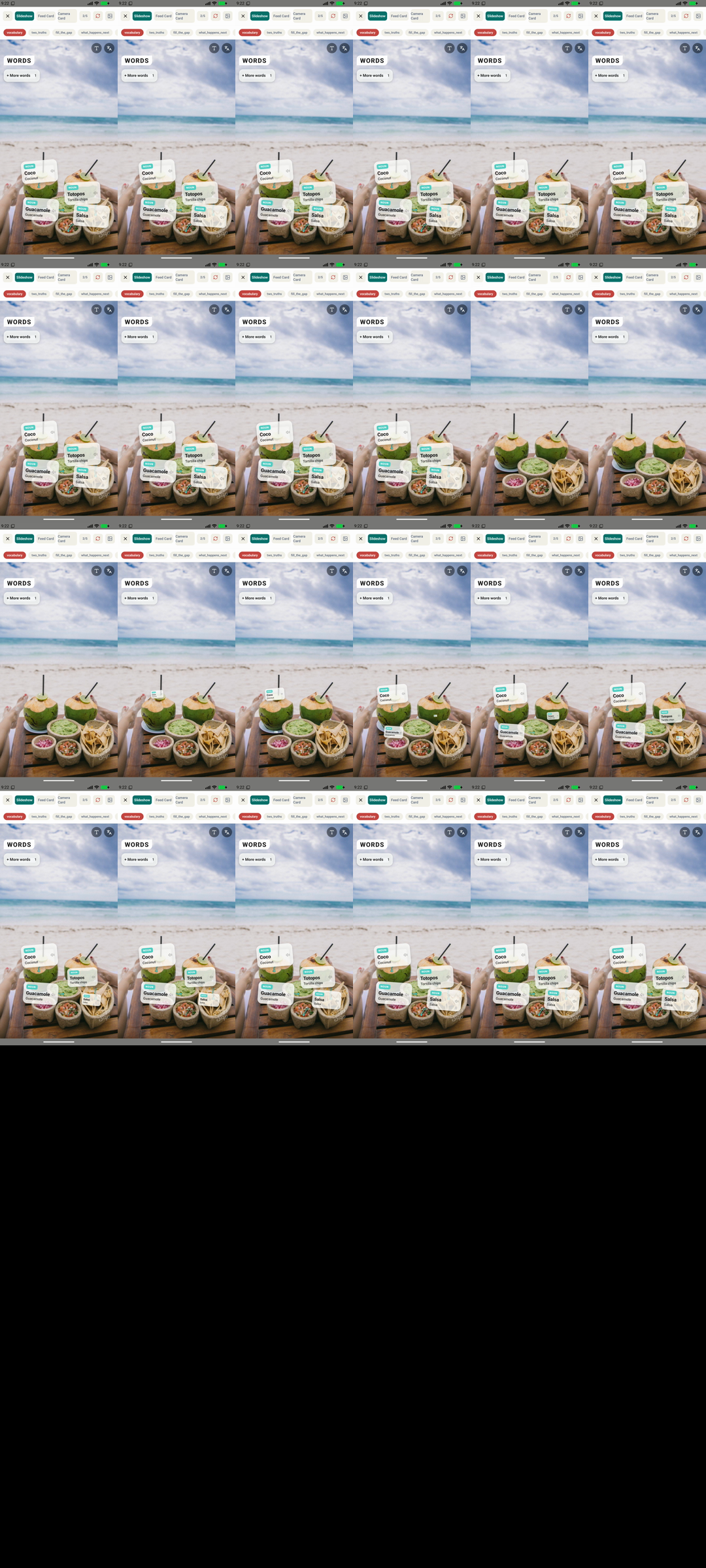

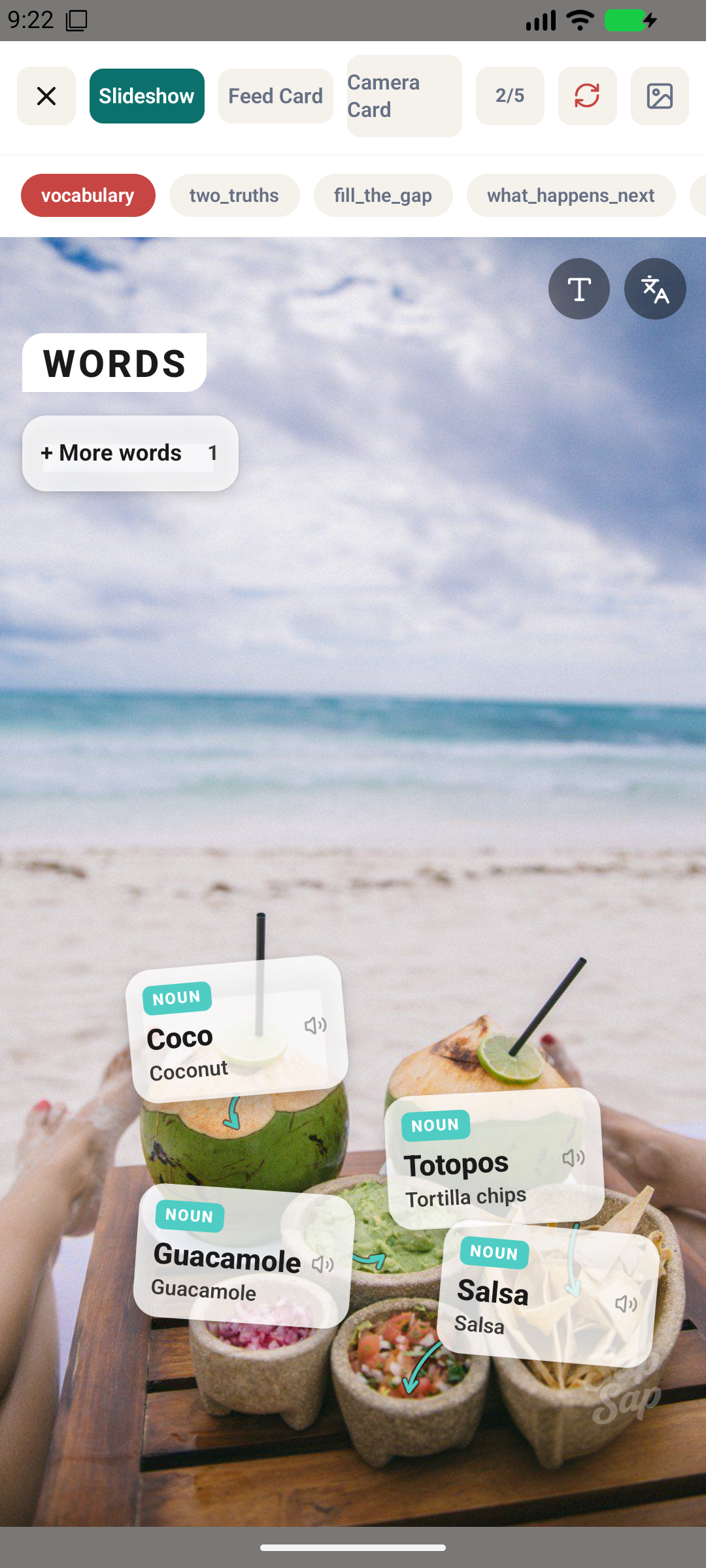

Beach snacks final grounded-card layoutBeach snacks animation contact sheet
Set 2

Beach snacks

Dense lower cluster: coconuts, guacamole, chips, and salsa.

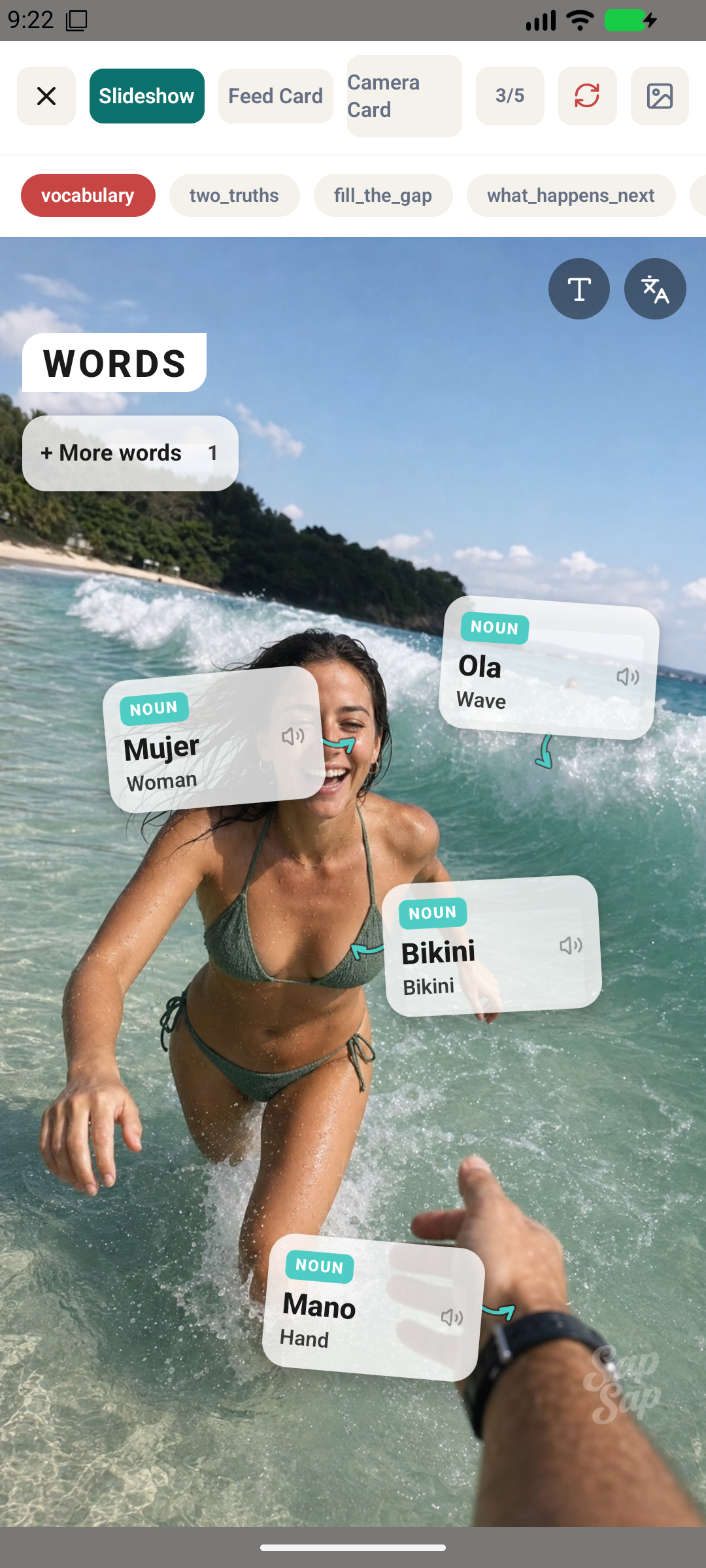

Incoming wave final grounded-card layoutIncoming wave animation contact sheet
Set 3

Incoming wave

Moving subject with center, right-edge, and foreground anchors.

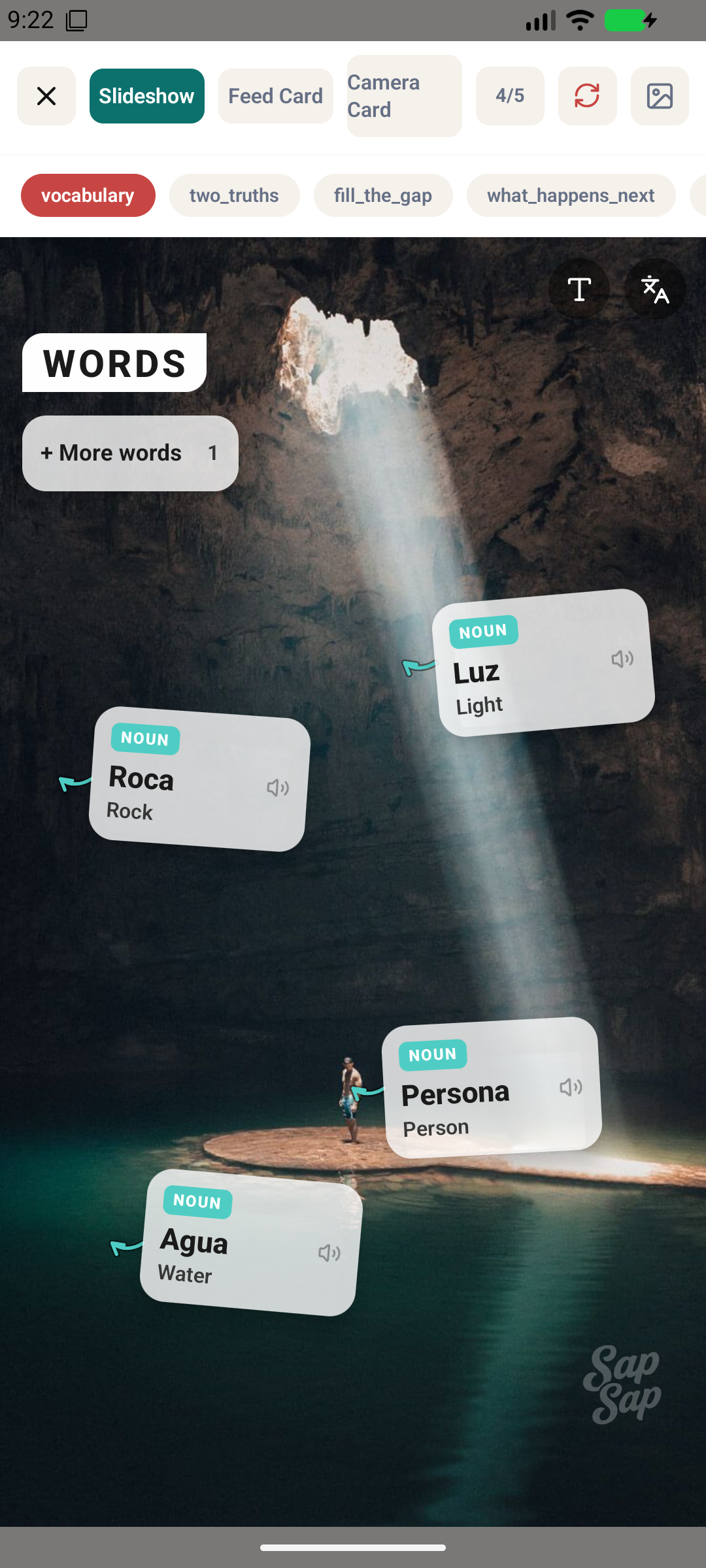

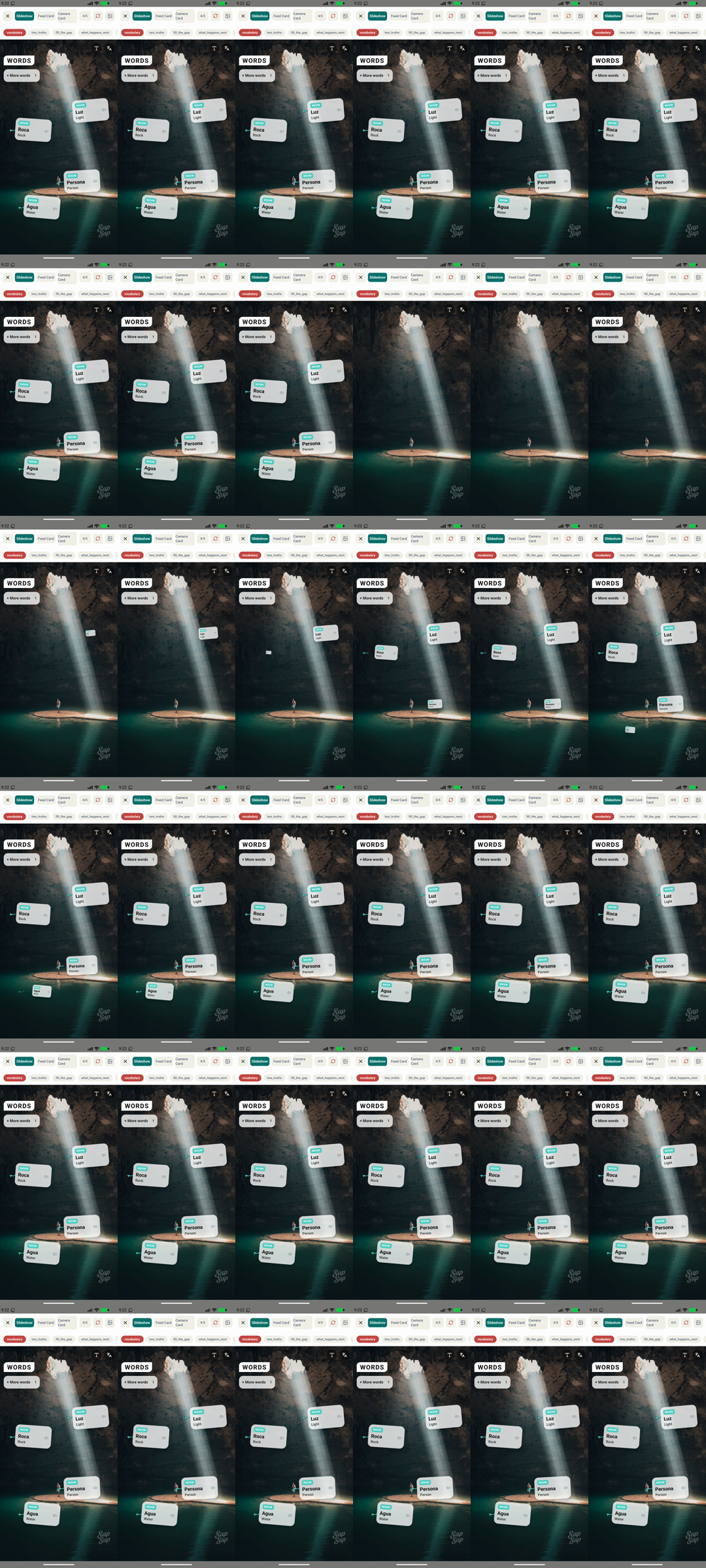

Cenote final grounded-card layoutCenote animation contact sheet
Set 4

Cenote

Dark, high-contrast scene with a tall vertical anchor spread.

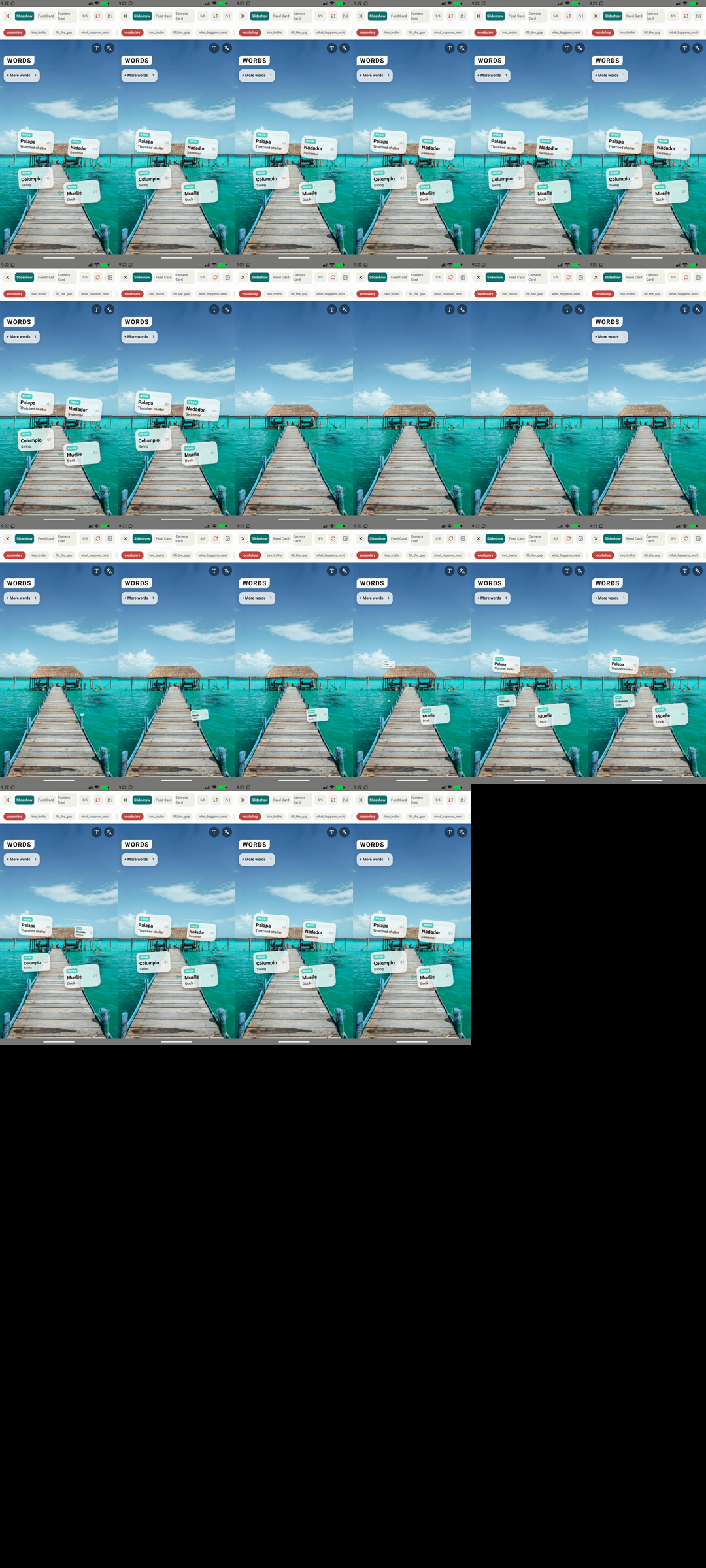

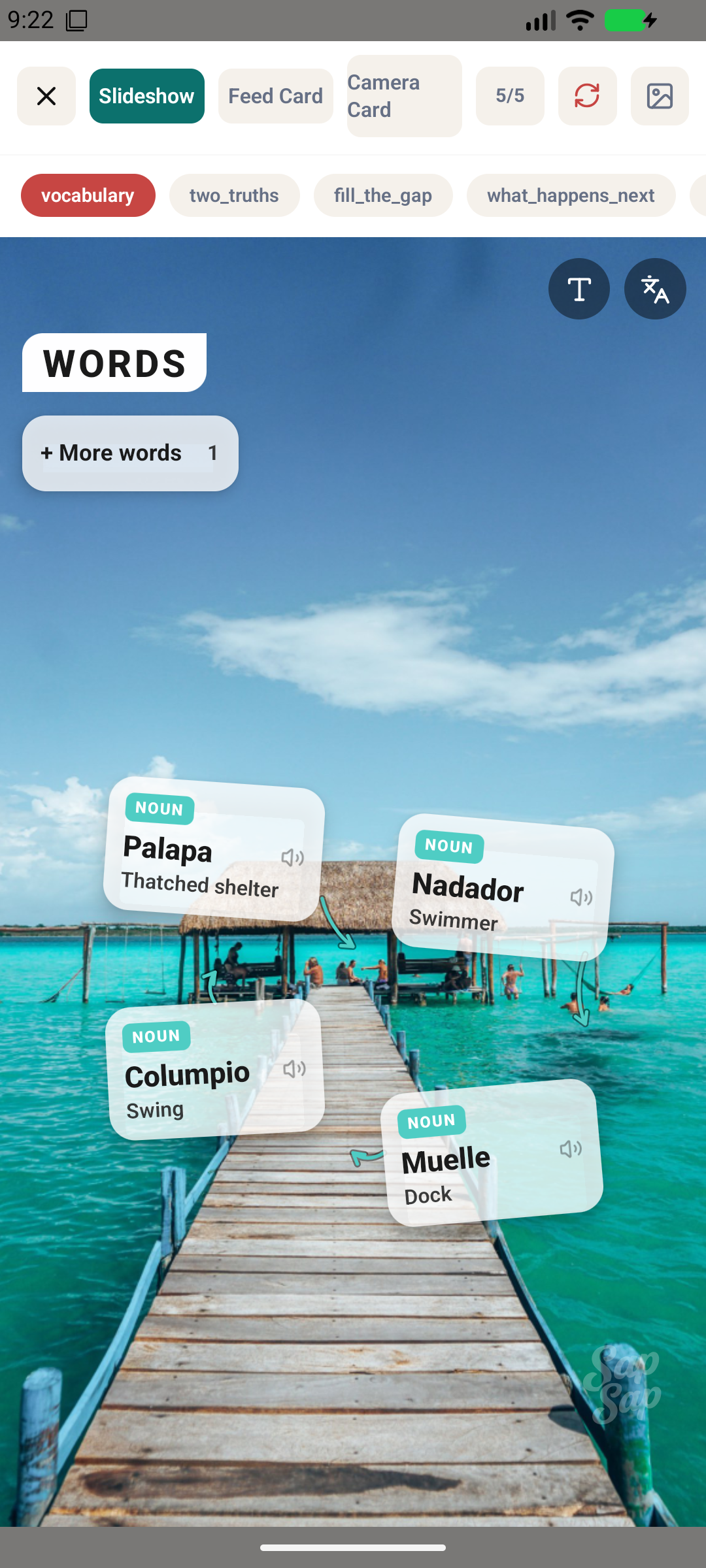

Lagoon dock final grounded-card layoutLagoon dock animation contact sheet
Set 5

Lagoon dock

Tight horizon cluster around the dock, palapa, swing, and swimmer.

Superseded animation evidence

Preserved because the earlier claim was not supported by these files.

Not proof

Original recording attempt

Mostly captured the already-settled vocabulary layout and a switch away.

Original contact sheet without a captured entrance
Not proof

Original contact sheet

Correctly called out by review: it did not show the entrance sequence.

Failed capture

Second original attempt

MP4 container with no decodable video frames.

Open raw failed MP4

Current App Store references

Downloaded during the visual-language audit.

App Store reference screenshot 1

Reference 1

App Store reference screenshot 2

Reference 2

App Store reference screenshot 3

Reference 3

App Store reference screenshot 4

Reference 4

Debug navigation evidence

Four intermediate screenshots; useful as an audit trail, not visual-design iterations.

Debug menu entryPNG Debug searchPNG Snap Card Types targetPNG Pre-navigation statePNG
